Grove SI1145 Sunlight, IR and UV I2C Sensor

The Grove Sunlight and UV I2C sensor can monitor sunlight intensity, IR intensity and UV intensity. All in one sensor. The sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

NOTE:  We have now moved the Grove Connector to the back to make it easier to mount

This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

The board contains an I2C Grove Connector ready to plug into your Pi or Arduino

UV Transparent Fused Quartz Window Available

If you are putting a Grove Sunlight / IR / UV sensor in a weather proof container, you should use a far-UV transparent Silica Quartz plate for the window over the sensor.

However, remember most plastics and glass are basically impervious to UV radiation (that’s why your Photogray sun glasses don’t work well in a car) so you need to use a special plastic or what I prefer, Silica Quartz. These Quartz JGS1 windows will let the UV through.

https://store.switchdoc.com/double-side-polished-far-uv-fused-silica-quartz-glass-sheets-plate-30-30-1mm/

Downloads

• Raspberry Pi Software (from SwitchDoc Labs)
• Arduino Software (from SeedStudio)
• SI1145 Full Specification

Example Project Software

• SunIOT - A Raspberry Pi IOT project (Blog Posting on SwitchDoc Labs)

Features

• Digital light sensor
• Wide spectrum detection range
• Programmable configuration
• 3.3/5V Supply
• Detect sunlight directly
• Grove compatible
• I2C Interface(7-bit)

Specifications

• Operating Voltage: 3.0-5.5V
• Working current: 3.5mA
• Wave length: 280-950nm
• Operating Temperature: -45C to +85C

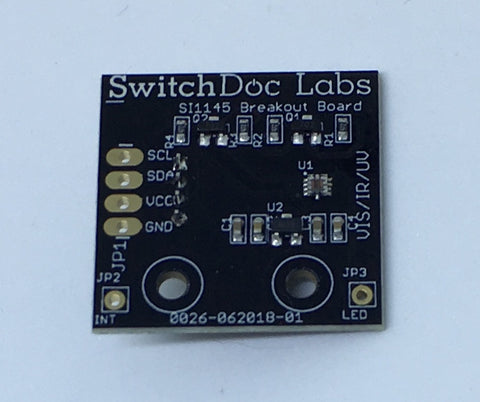

Sunlight Sensor Board

• Grove Connector - a 4pin interface, contain VCC, GND, SDA and SCL
• LED - LED Driver pin
• INT - a programmable interrupt output
• SI1145 - IC

Spectrum

This content is from Wikipedia - Spectrum.

A spectrum (plural spectra or spectrums[1]) is a condition that is not limited to a specific set of values but can vary infinitely within a continuum. The word was first used scientifically within the field of optics to describe the rainbow of colors in visible light when separated using a prism. As scientific understanding of light advanced, it came to apply to the entire electromagnetic spectrum.

Lumen

The lumen (symbol: lm) is the SI derived unit of luminous flux, a measure of the total "amount" of visible light emitted by a source. Luminous flux differs from power (radiant flux) in that luminous flux measurements reflect the varying sensitivity of the human eye to different wavelengths of light, while radiant flux measurements indicate the total power of all electromagnetic waves emitted, independent of the eye's ability to perceive it. Lumens are related to lux in that one lux is one lumen per square meter.

For some examples:

• Dark night: 0.001—0.02
• Moonlight night: 0.02—0.3
• Cloudy day indoor: 5—50
• Cloudy day outdoor: 50—500
• Sunny day indoor: 100—1000
• Suitable for reading: 500—600
• home video camera: 1400

Ultraviolet index

The following is from Wikipedia - Ultraviolet index.

The ultraviolet index or UV Index is an international standard measurement of the strength of sunburn-producing ultraviolet (UV) radiation at a particular place and time. The scale was developed by Canadian scientists in 1992, then adopted and standardized by the UN's World Health Organization and World Meteorological Organization in 1994. It is primarily used in daily forecasts aimed at the general public, and is increasingly available as an hourly forecast as well.

The UV Index is designed as an open-ended linear scale, directly proportional to the intensity of UV radiation that causes sunburn on human skin. For example, if a light-skinned individual (without sunscreen or a suntan) begins to sunburn in 30 minutes at UV Index 6, then that individual should expect to sunburn in about 15 minutes at UV Index 12 – twice the UV, twice as fast.
