Yagi High Performance Directional Antenna 433MHz
This is a low cost high gain 433MHz directional Yagi Antenna designed for long distance directional transmission. This is designed for use with our WXLink and Solar WXLink 433MHz LoRa products. The Antenna Cable is 300mm long.
It comes with a cable adaptor that will directly connect to Our 433MHz LoRa board using an JK-IPEX connector. Mounting Clamps are also included.
RF Cable Assemblies RP-SMA (Female) JK-IPEX MHF U.FL 1.13 100MM
Specifications
Mounting can be Vertical or Horizontal.
Applications
● 433MHz system
●Point-to-point，point-to-multipoint system
●Wireless bridging，client terminal antennas
Electrical
|
Frequency range(MHz) |
428-438 |
|
Bandwidth(MHz) |
10 |
|
Gain(dBi) |
10 |
|
Elements |
5 |
|
Half-power beam width(°) |
H:35 V:30 |
|
Front-to-back ratio(dB) |
≥10 |
|
VSWR |
≤1.5 |
|
Input Impedance(Ω) |
50 |
|
Polarization |
Horizontal or Vertical |
|
Maximum input power(W) |
100 |
|
Lightning protection |
DC Ground |
|
Input connector type |
RP-SMA male |
Mechanical
|
Dimensions(mm) |
810*380 |
|
Cable length(m) |
0.3 |
|
Antenna weight(kg) |
0.45 |
|
Operating temperature(°c) |
-40~60 |
|
Rated Wind Velocity(m/s) |
60 |
|
Clamp |
U-shape |
|
Mounting hardware(mm) |
Φ35~Φ50 |
Performance testing:
SMITH

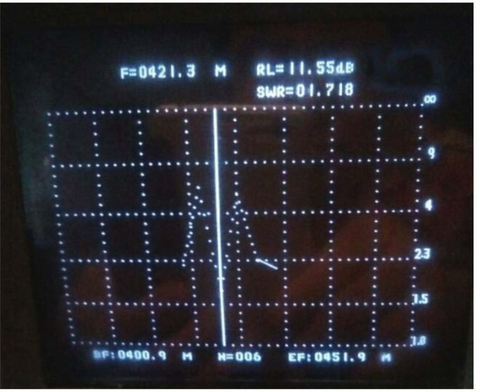

VSWR

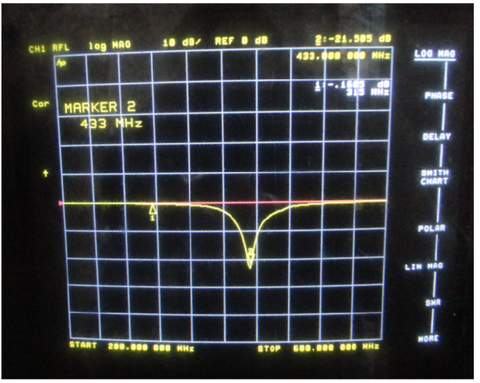

RETURN LOSS
GAIN
